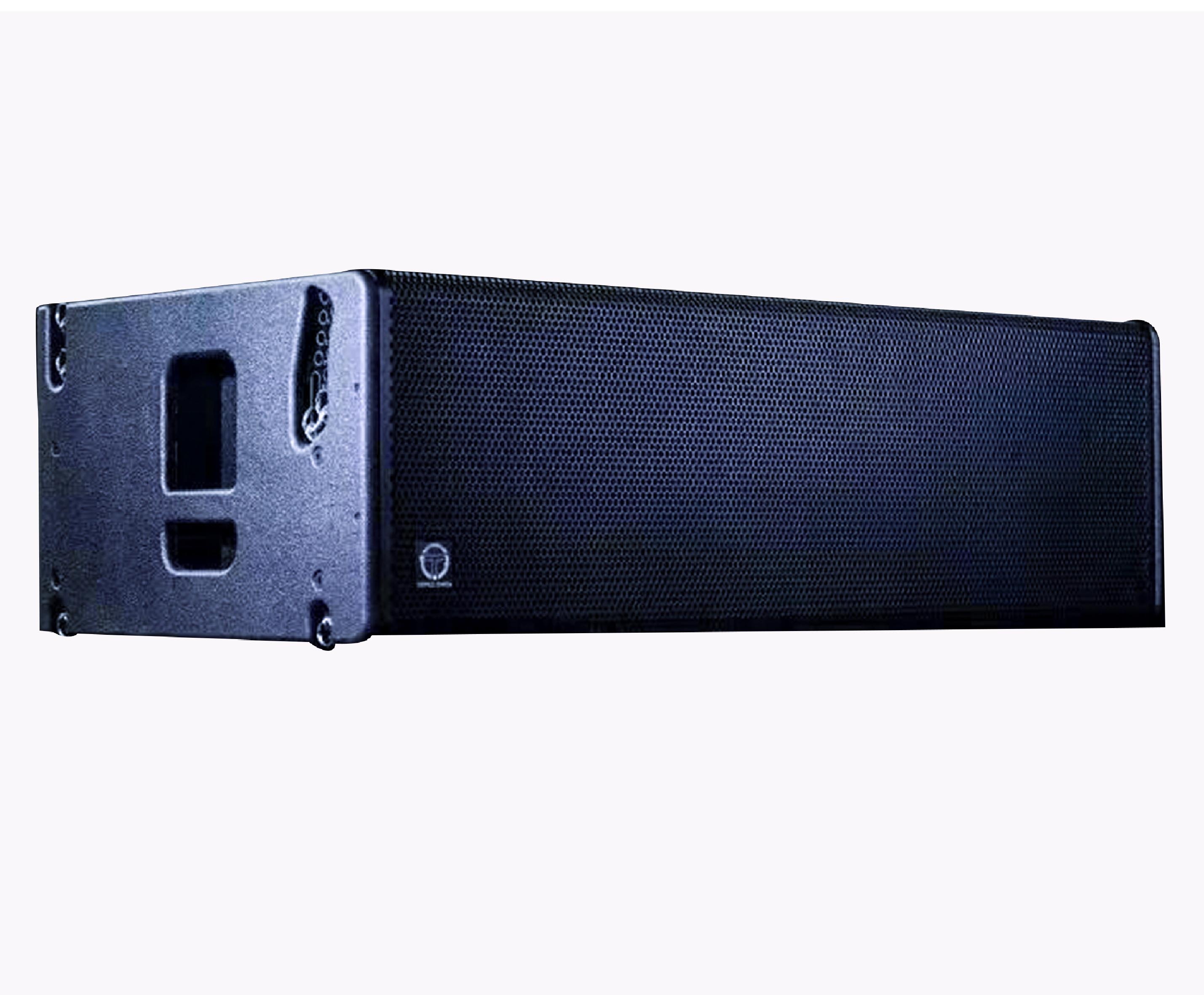

FULL XLA2
Technical Features 技术特性Amplifier 功率放大器:5000 W. Program power. 1000W+1000W (LF AES) 500W (HF AES)Input Sesitivity 输入灵敏度:8dBu-1,94 VInput Impedance 输入阻抗:20KOhms BalancedMains 电源: Universal Switch Mode Power Supply 85-265V/45-65Hz. Overvoltage Protection(通用开关电源85-265V/45-65Hz。电压过载保护)Average Current Draw 平均电流消耗:3A(Heavy Duty Musical Program)SPL(1m.) 声压级:140 dB (Peak 144 dB)Built-In DSP 内置DSP:64 Bit Processing unit Includes Factory PresetsAD/DA ConverteresA D/DA转换器:24 Bits-48kHz- SNR>112 dBPresets 预设:HPF 60 Flat / HPF 60 Nearfield / HPF 60 Long-Throw Plus 25 Configurable User MemoriesFrequency Response 频率响应:(-10dB) 35 hz-18KHzLF 低频:2x12" Neodymium Woofers (4" Voice Coil)HF 高频:3x1,4nTitanium Diaphragm, Neodymium Magnet CompressionDriver:Directivity (HxV)方向性:90°x10°Rigging System Adjust Box Construction 箱体吊挂件可调角度:0°/1°/ 2,5°/ 3,5°/ 5°/ 6°/ 7°.Easy positioning systemBox Construction:Multilayer Baltic Birch PlywoodFinish 表面:High Resistant Black Polyurea CoatingGrille 网面:2mm.Steel with Internal Black Micro-FoamConnectors 连接器:1xXRL3 Input / 1xXLR3Link / 1x AC PowerCon Imput/ 1x AC PowerCon Link / IxEtherCon RJ45 IN / 1x EtherCon LinkDimensions (HxWxD) 尺寸 :350x1170x570 mm. / 13.78x46x22,44 Inches Weight 重量:59.85 Kg. /132 Lb.
